Adapter Kit - Cummins R2.8 to Toyota R151F Long (HZJ79)

$1,630.00
No reviews yet Write a Review
SKU:
AD-00062
Weight:
95.00 LBS
Width:
16.00 (in)
Height:
16.00 (in)
Depth:
12.00 (in)
Shipping:
Calculated at Checkout

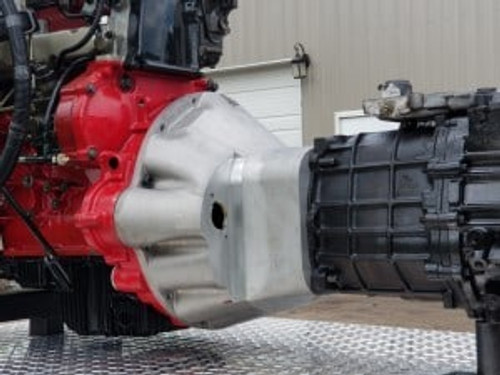

Cummins R2.8 Turbo Diesel to Toyota R151F HZJ79 Land Cruiser

  • Bolts Cummins R2.8 to Toyota R151F
  • Designed for the 1996 and up long input shaft
  • External slave
  • Kit #AD-00062

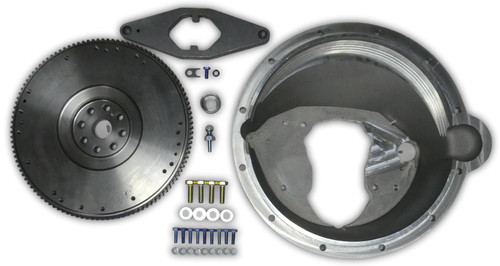

Parts included in Kit:

QTY Description Part# & Location
1 Bell Housing QDB-210115
1 Throw Out Bearing N083SA
1 Clutch Fork QDB-220023
1 Pivot Ball Assembly QDB-220124
1 Flywheel QDB-210109
1 Flywheel Bushing Insert QDB-210016
1 Pilot Bushing 6201DDUC3E
1 Pressure Plate 361675 (10.5" Mopar)
1 Clutch Disc QDB-210120 (21 Spline 10.5")
1 Slave Cylinder & Fitting MN-00003
1 Fork Retainer QDB-210001
1 5/16-18x.75" hex head Fork Retainer
1 5/16 lock washer Fork Retainer
9 M10-1.25x35mm flange hex head Transmission to Bell
12 M10-1.5x40mm SHCS Engine to Bell
12 M10 SAE flat washer Engine to Bell
2 5/16-18x1.25" Hex Head Slave Cylinder
2 5/16 flat washer Slave Cylinder
2 5/16 lock washer Slave Cylinder
6 3/8-16x1.0" hex head Clutch
6 3/8 lock washer Clutch
1 3/8-16x3.5" Full Thread Hex Head Pivot Ball
1 3/8-16" Nut Pivot Ball
7 M10 Flat Washer Pivot Ball
