Tremec TR4050 4×4 to Mopar LA Small Block & Gen 3 Hemi
- Works with Dodge Small Block V8 LA engines
- Works with Gen 3 Hemi 5.7, 6.1, 6.2, 6.4 V8
- Designed for the Tremec TR4050 5 speed 4×4 manual transmission
- A356 T6
- Made in the USA
- Kit# AD-00018
- Designed for External Slave Cylinder
Parts included in Kit:

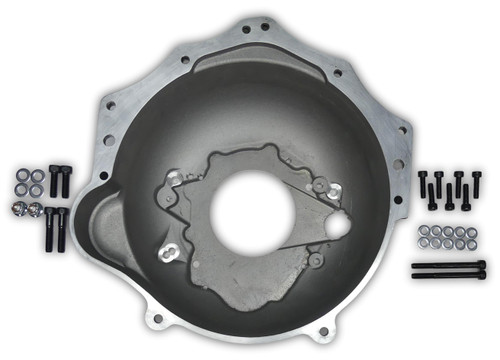

| Bell Housing | Part# QDB-210133 |
| Flywheel Pilot Bearing | Part# QDB-210076 |
| Pilot Bearing Insert | Part# FC69907.1 |
| Pivot Ball | Part# QDB-210146 |
| Clutch Fork | Part# 53006388 |
| Fork Retainer | Part# 4338855 |
| Throw Out Bearing | Part# N093SA |
| Bearing Snout | Part# QDB-220026 |
| Qty 2: 5/16-18×1.5″ | Hex Head (Snout) |
| Qty 2: 5/16-18×1.25″ | Hex Head (Slave) |
| Qty 2: 5/16 Washer | Flat (Slave) |
| Qty 2: 5/16 Washer | Lock (Slave) |
| Inspection Cover | Part# QDB-210052 |
| Qty 2: 1/4-20x.50″ | Hex Head (Inspection Cover) |
| Qty 2: 1/4 Washer | Flat (Inspection Cover) |
| Qty 2: 1/4 Washer | Lock (Inspection Cover) |
| Dust Cover | Part# QDB-210094 |
| Qty 4: 7/16-14-1.0″ | Hex Head (Dust Cover) |
| Qty 4: 7/16 Washer | Flat (Dust Cover) |
| Qty 5: 3/8-16×1.75″ | Hex Head (Bell to Engine) |
| Qty 5: 3/8 Washer | Flat (Bell to Engine) |
| Qty 5: 3/8 Washer | Lock (Bell to Engine) |
| Qty 4: 7/16-14×1.5″ | Hex Head (Bell to Engine & Starter) |
| Qty 4: 7/16 Washer | Flat (Bell to Engine & Starter) |
| Qty 2: 7/16 Washer | Lock (Starter) |
| Qty 4: 1/2-13×1.5″ | Hex Head (Bell to Trans) |
| Qty 4: 1/2 Washer | Flat (Bell to Trans) |
Dimensions:
Thickness from Engine Block to Transmission face: 6.50″
Weight: 35 lbs
